1000W DE FIXTURE

Our new generation of light compensating system is driven by digital ballast. It has excellent performances such as high photoelectric conversion efficiency, high luminous efficiency, high reliability, energy saving, and environmental protection. The use of professional agricultural sodium lamps as a light source enables the lamps to emit light that is consistent with the need for plant photosynthesis. Thereby significantly increasing the yield and quality of the produce. Control of the maturity of plants and enhance of ability to resist pests and diseases are possible too.

Advantages of OUR FIXTURE

Easy installation

Cleaning without uninstalling bulb

Uniform light distribution

Fast Heat dissipation

High reflection rate

Breathing hole

Intelligent control

Long operation life

specification1

Digital intelligent remote control for communication, dimming and switching.
Micro controller Unit protects the whole assembly automatically.
Soft switching technology to make sure longer operating life with less electromagnetic interference.
Self locking and waterproof plug with 0-500VAC Industrial grade full voltage input.
IP65 waterproof level, safe and reliable.
Breathing hole to balance temperature of housing.

Airfoil lampshade reflector to speed up air convection hence increasing lamp life.
Special design of fixture structure to reduce heat conduction to housing.
Multi-toothed housing structure to increase heat dissipation area.
Unique reflector design avoids reflected light concentrating lamps and makes sure uniform light distribution.
Perfection match of refraction and reflection letting more lights go into crops.
Reflector cleaning without taking down bulb to lower maintenance cost.
Assembly by hook, no screw needed, quick and efficient.

specification2

Input power	1035W TYPICAL
Frequency	50/60HZ
surge current	＜30A
Power factor	0.97
Total harmonic distortion	≤10%
Output power	1000W TYPICAL
MTBF	＞30000h
Temperature ambient	-20~+40℃
Bulb matched	1000W double ended high pressure sodium
Dimensions（L x W x H）	558x237x191mm

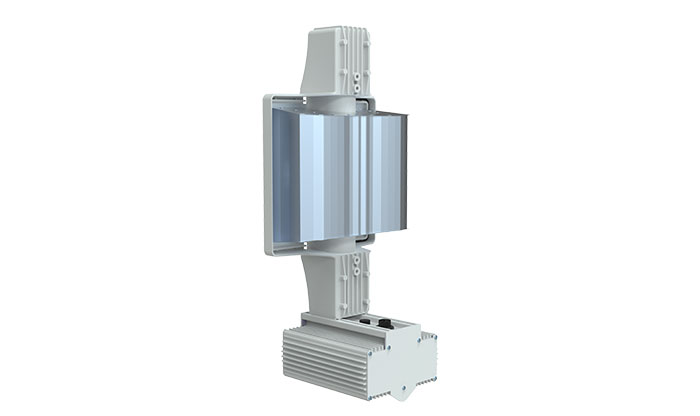

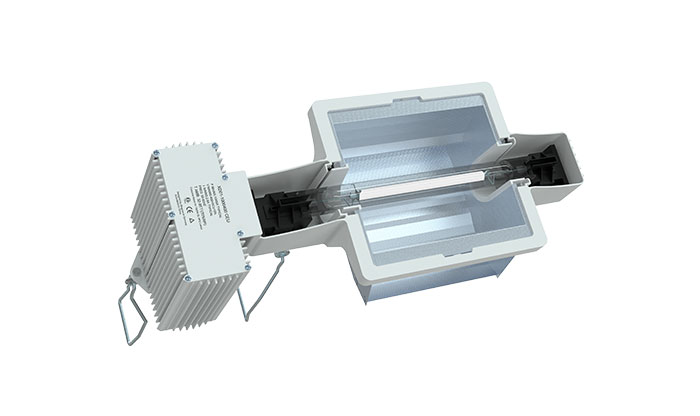

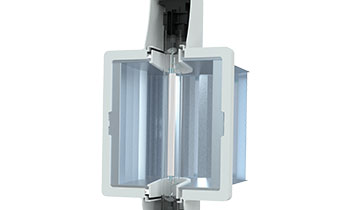

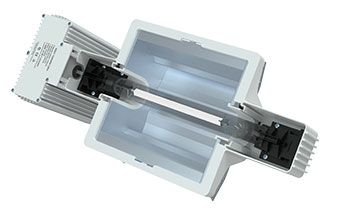

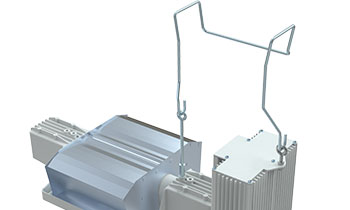

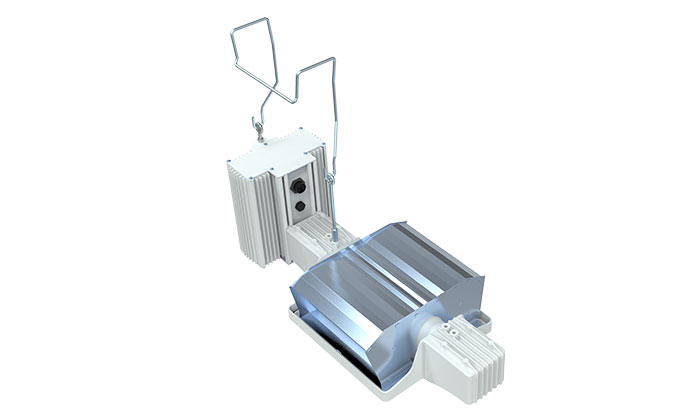

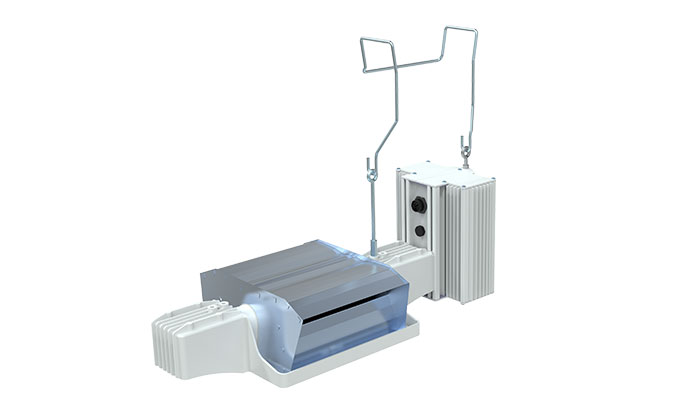

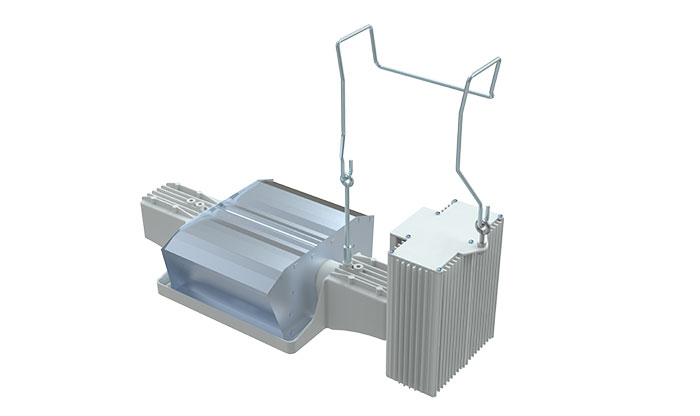

product pictures
